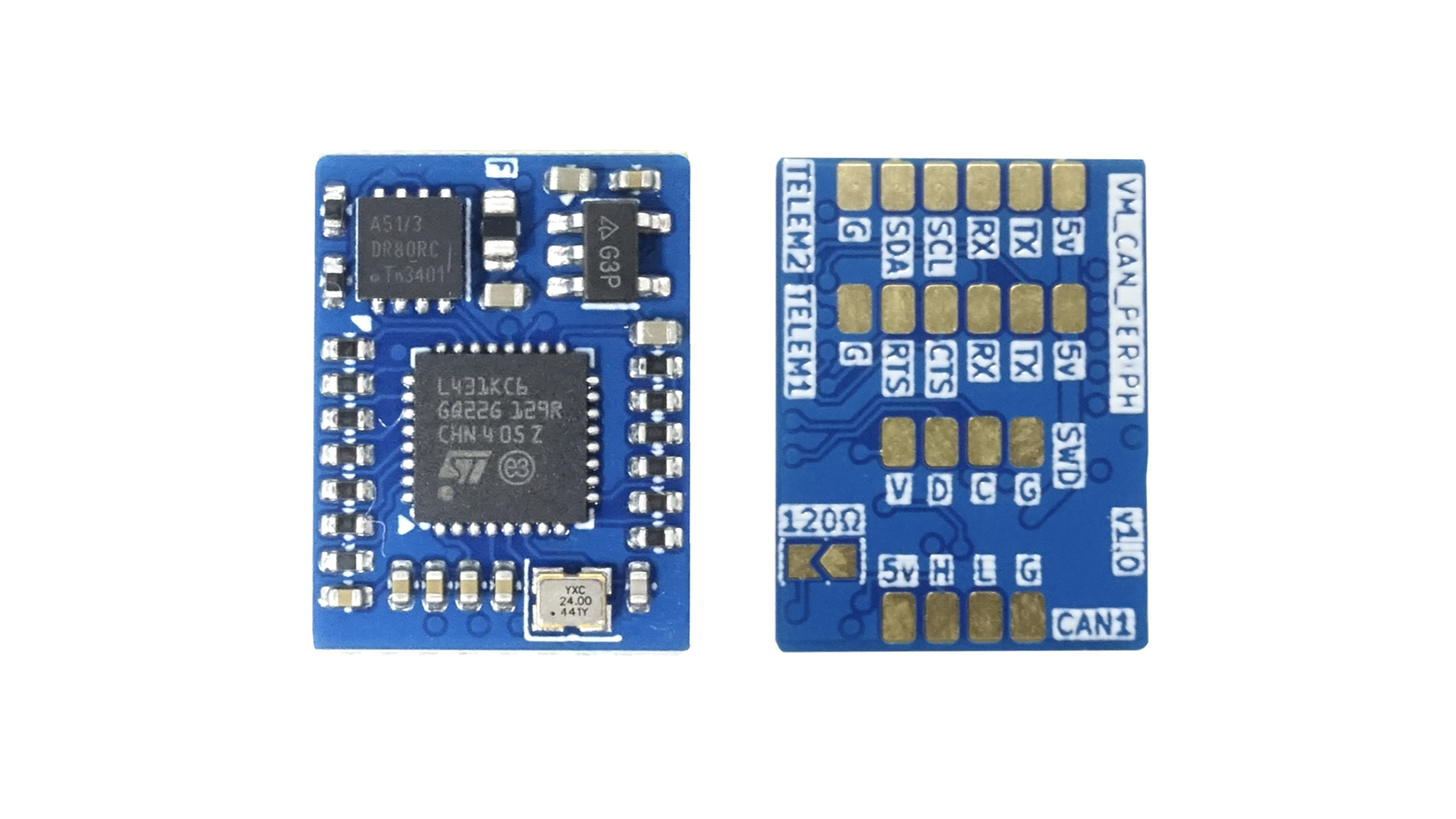

Vimdrones AP_Periph Pico
Specification
| Parameter | Value |
|---|---|
| Power Supply | 5V |
| Firmware | AP_Periph |
| Firmware Target | VM-L431-Periph-Pico VM-L431-BatteryTag |
| CAN Ports | 1 |
| CAN Termination | 120Ω with Solder PAD switch, default OFF |
| CAN Port Connector | Solder PAD |
| Board Outline | 15mm × 11mm |
| Board Thickness | 1.2mm |
| 3D Model | STL | STEP |

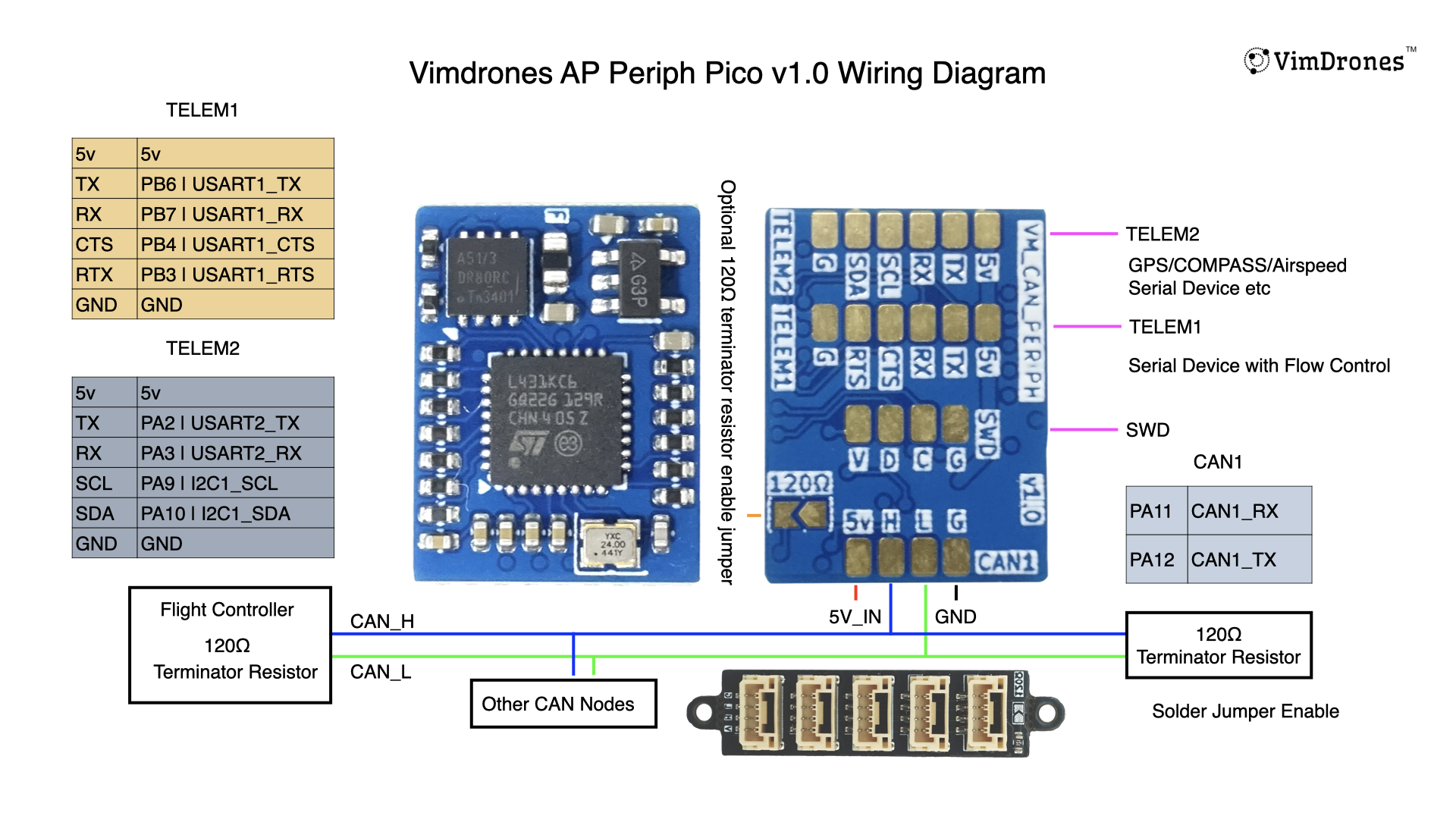

Wiring
Features
- Serial Device DroneCAN converter, GPS, Telemetry, Elrs
- I2C Device DroneCAN converter, COMPASS, BARO, AirSpeed
