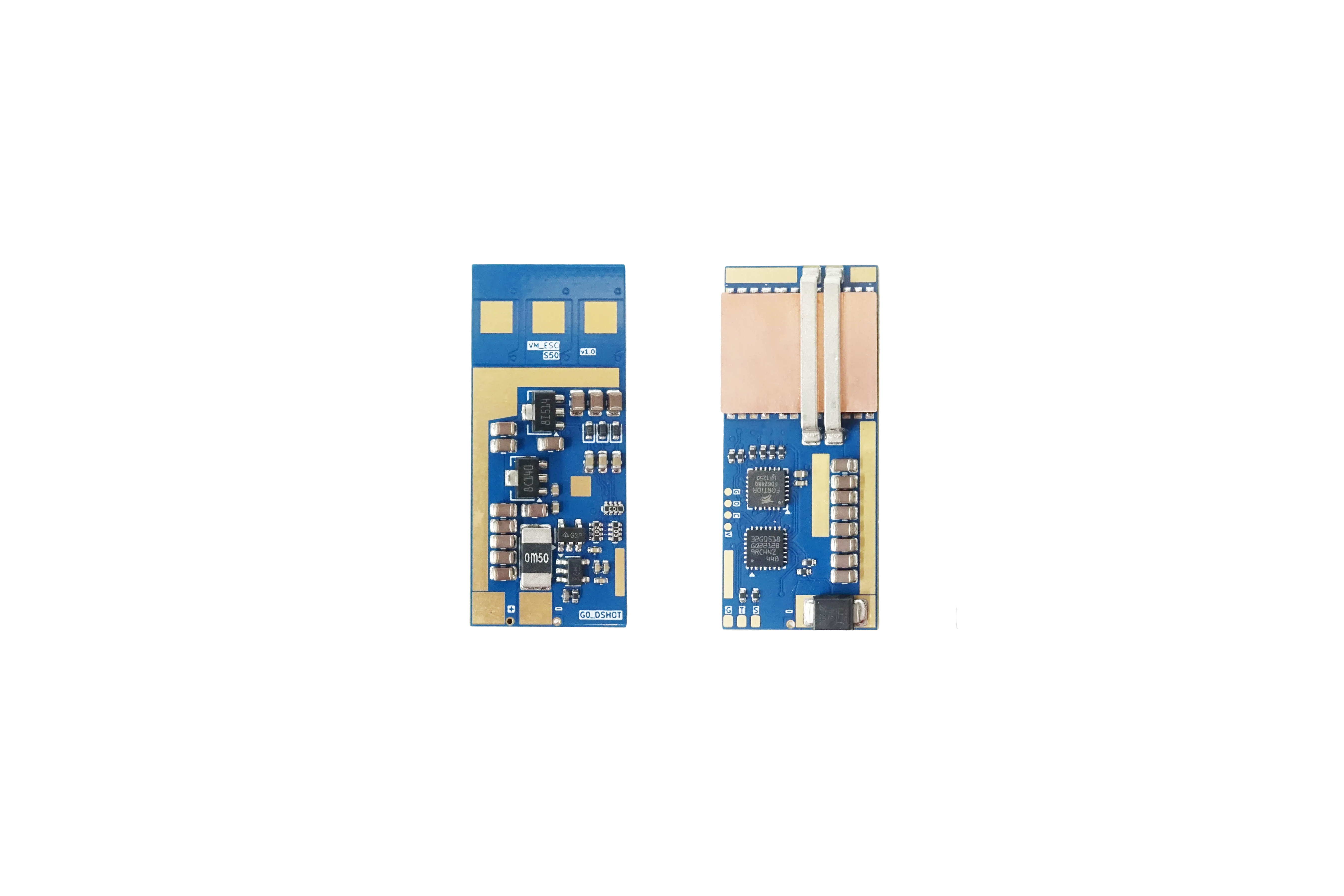

Vimdrones ESC S50 G0 DSHOT
Specification
| Parameter | Value |
|---|---|
| Power Supply | 2S – 6S |
| MCU | ST STM32G051G8U6 |
| MOSFET | onsemi NTMFS5C430NLT1G |
| Continuous Current | 50A (cooling required above 30A) |
| Board Outline | 40mm × 17mm |
| Board Thickness | 1.2mm |
| 3D Model | STL | STEP |
| Firmware | AM32 |
| Firmware Target | VIMDRONES_S50_G071 |
| Bootloader Target | AM32_G071_BOOTLOADER_PB4_64K |
| Input | DSHOT / PWM |
| Telemetry | BDSHOT / EDSHOT — RPM | Voltage | Current | Temperature |

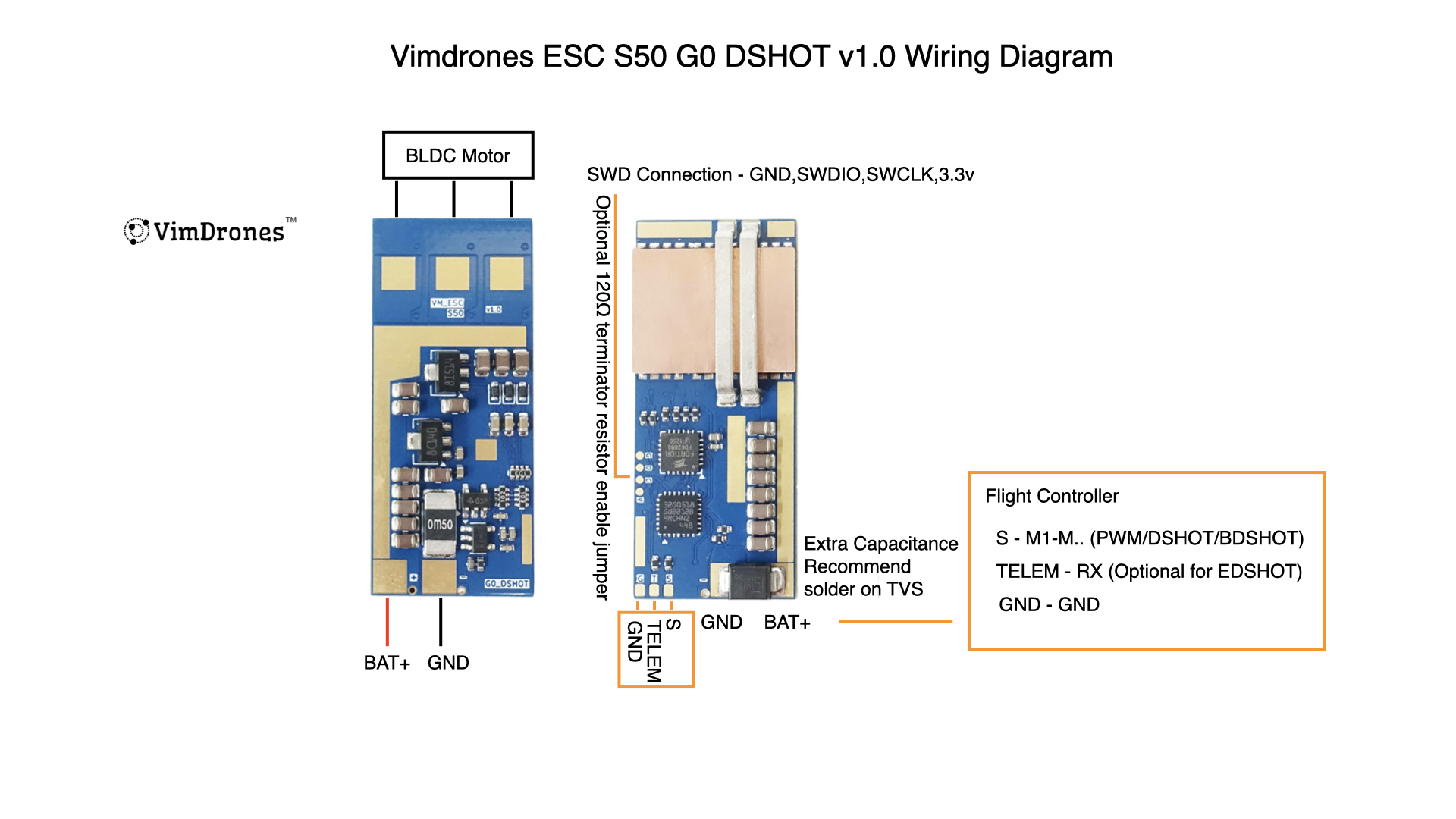

Wiring
