Vimdrones XBee

🛒 Purchase

---

Specification

Parameter	Value
Power Supply	5V
RF Module	Digi XBee SX 900 / SX 868
USB-Serial	Silabs CP2102
Connector	Pixhawk Standard 6P Telem Connector (UART + FLOW)
Board Outline	44mm × 26mm
Mount Hole	4 * M2.5 (40mm × 22mm)

---

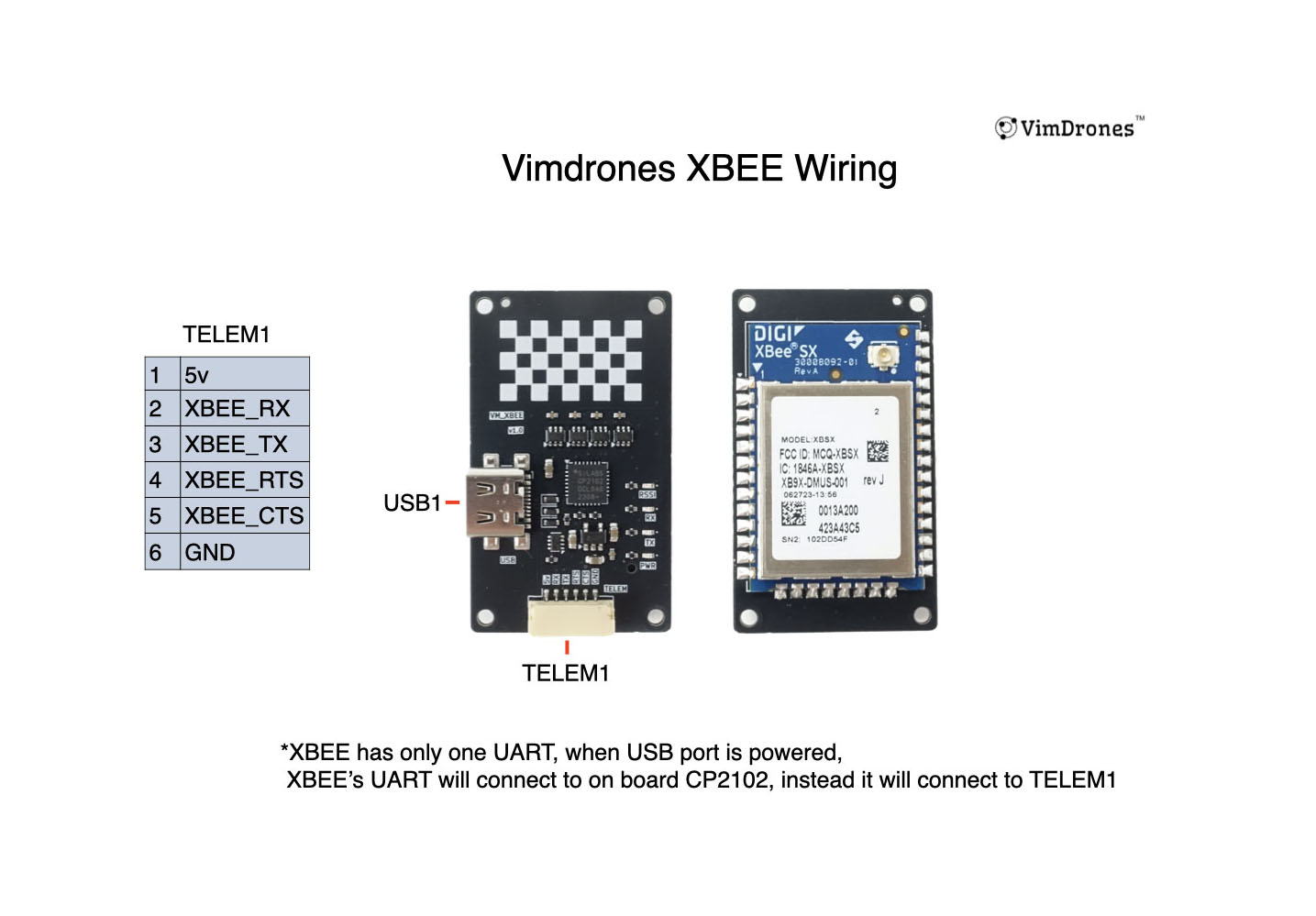

Wiring
