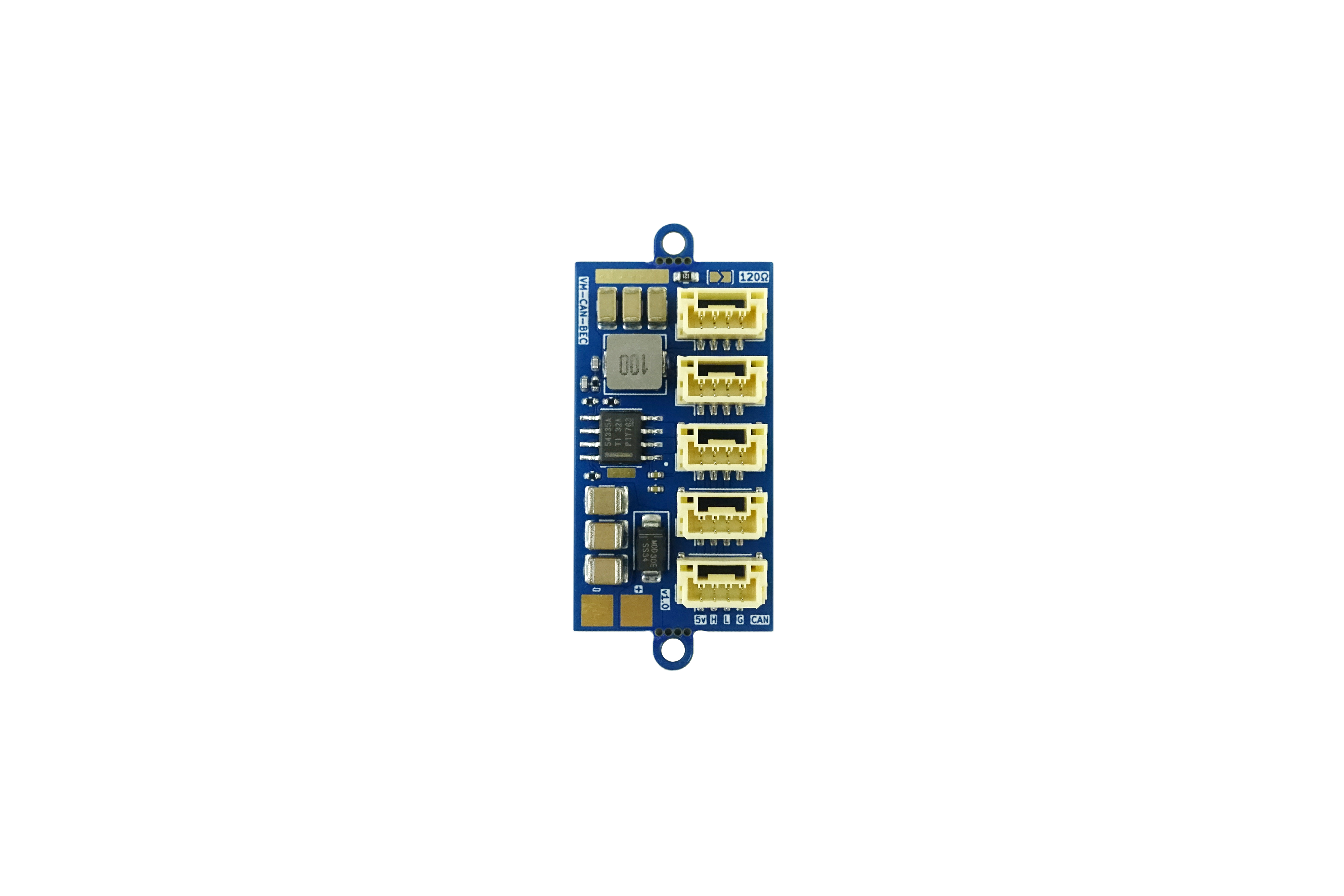

Vimdrones CAN Splitter with BEC
Specification
| Parameter | Value |
|---|---|
| Input Voltage | 6V – 30V |
| Output Voltage | 5.2V |
| Output Current | 3A max |
| CAN Ports | 5 |
| CAN Termination | 120Ω with Solder PAD switch, default OFF |
| CAN Port Connector | Pixhawk Standard 4P CAN Port |
| Board Outline | 35mm × 19mm (mount hole removed) |
| Board Thickness | 1.2mm |
| 3D Model | STL | STEP |
| Mount Hole | 2× M2 (removable, 39mm center distance) |
Pinout
Efficiency Test Report
