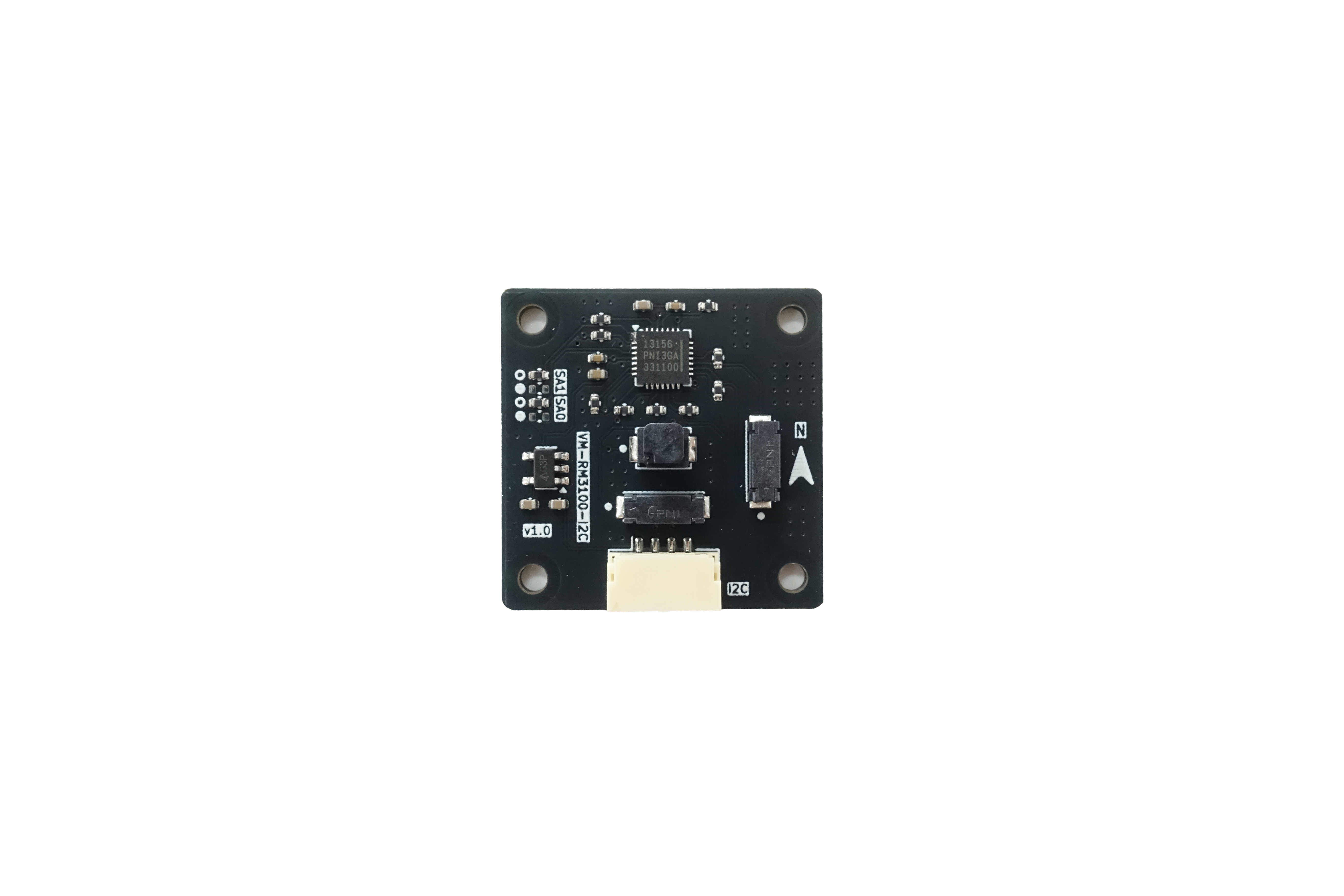

Vimdrones RM3100 Compass Module
Specification
| Parameter | Value |
|---|---|
| Power Supply | 5V |
| Compass | PNI RM3100 |
| Connector | Pixhawk Standard 4P I2C connector |
| I2C Address | 0x20 (Adjustable) |
| Board Outline | 25mm × 25mm |
| Board Thickness | 1.2mm |
| Mount Hole | 4 * M2 (20mm × 20mm) |
| 3D Model | STL | STEP |

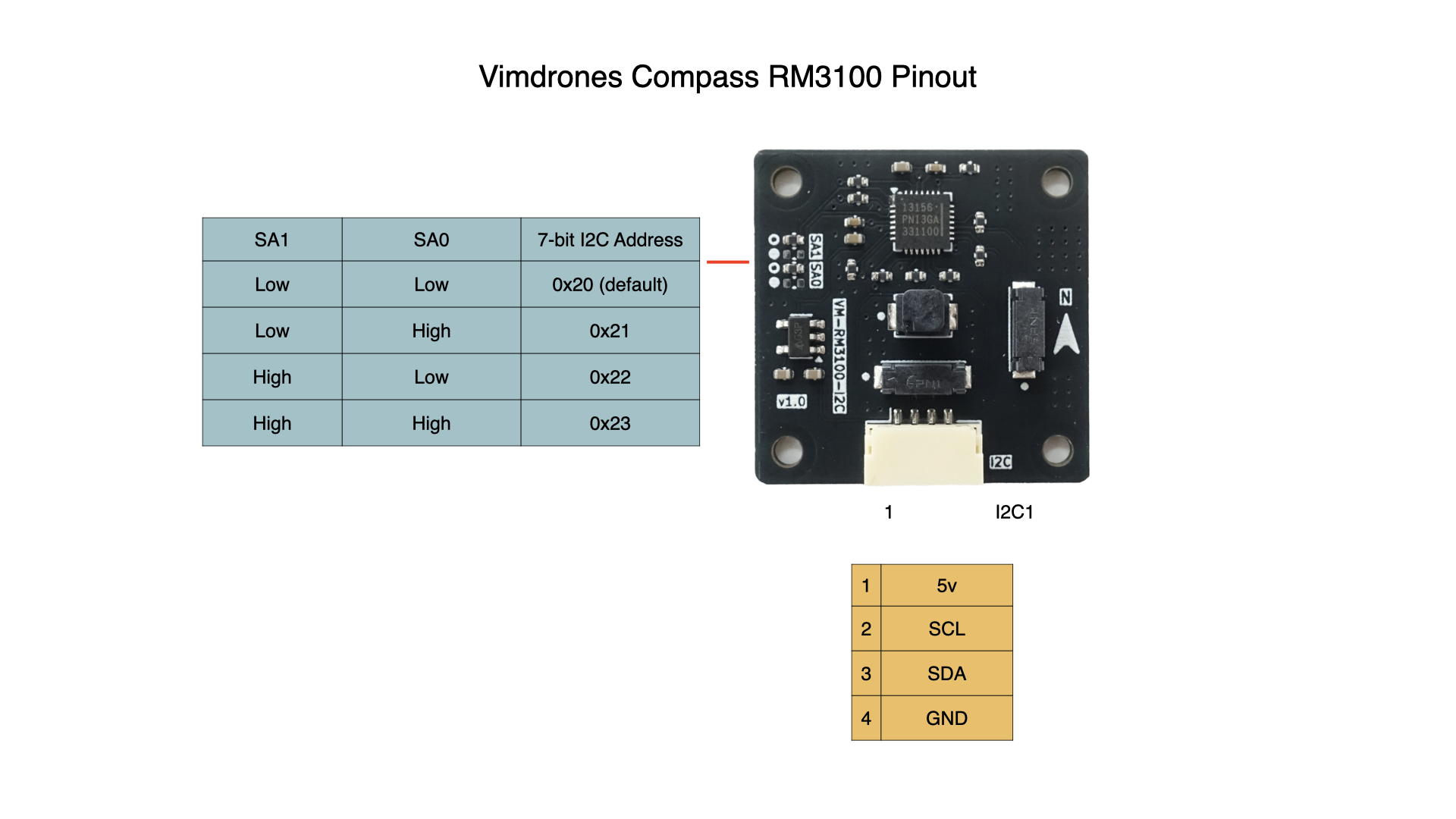

Pinout
