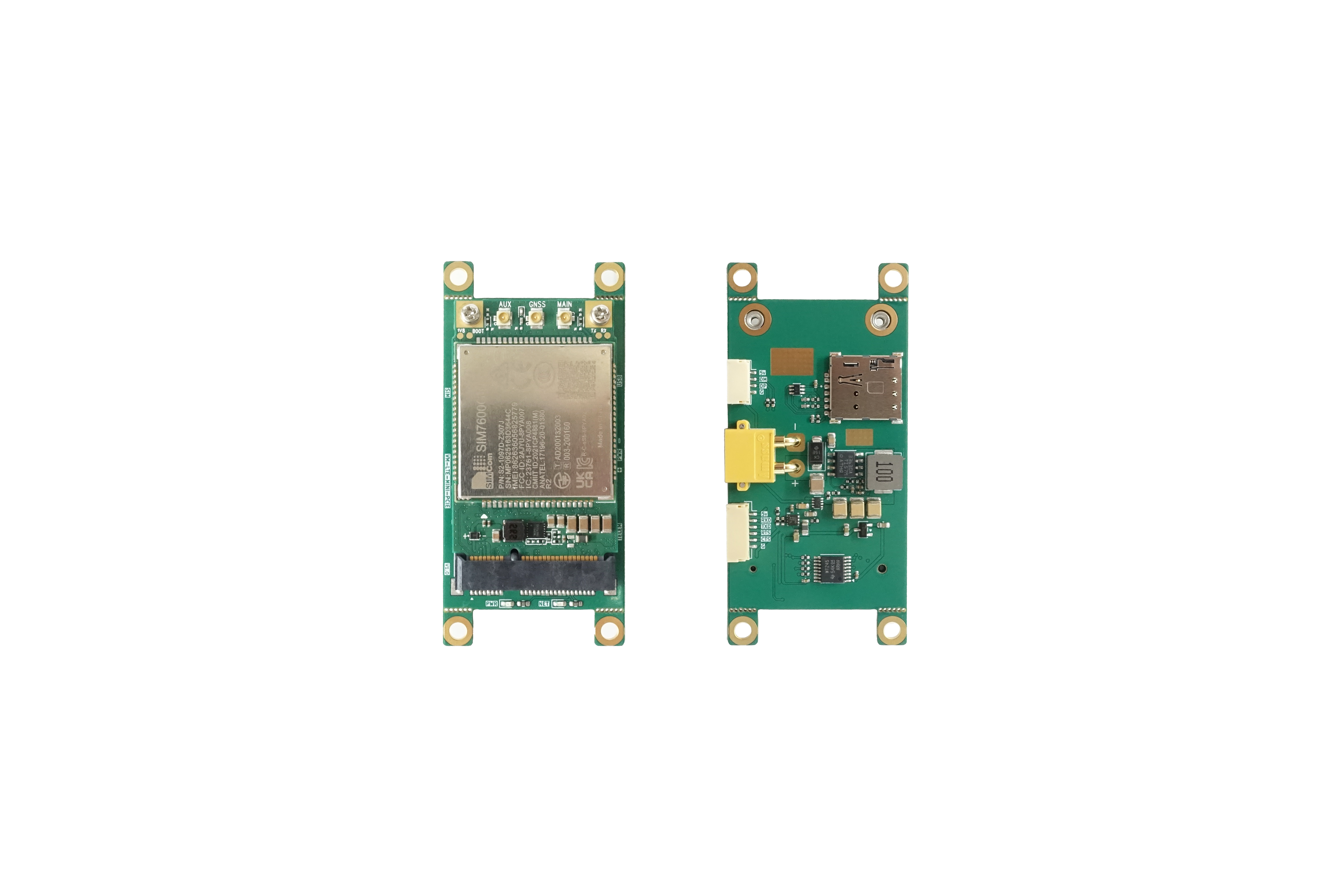

Vimdrones Telemetry LTE Base Board
Specification
| Parameter | Value |
|---|---|
| Power Supply | 2S-6S (XT30) | 5V (Telem /USB) |
| Support LTE Module | all SIM7600 PCIE variants |
| LTE Connector | Mini PCIE |
| SIM Card Type | Nano SIM (4FF) |
| Telem Connector | Pixhawk Standard 6P Telem Connector (UART + FLOW) |
| USB Connector | Pixhawk Standard 4P USB Connector |
| Board Outline | 74mm * 35mm | 60mm * 35mm (mount hole removed) |
| Mount Hole | 4 * M3 (68mm * 29mm) removable |
| 3D Model | STL | STEP |
None SIM7600 PCIE modules
Other PCIE modules like Quectel EC200 PCIE, the uart pin define and TTL voltage level is totally different, so not recommend to use with this base board, although the USB interface is working

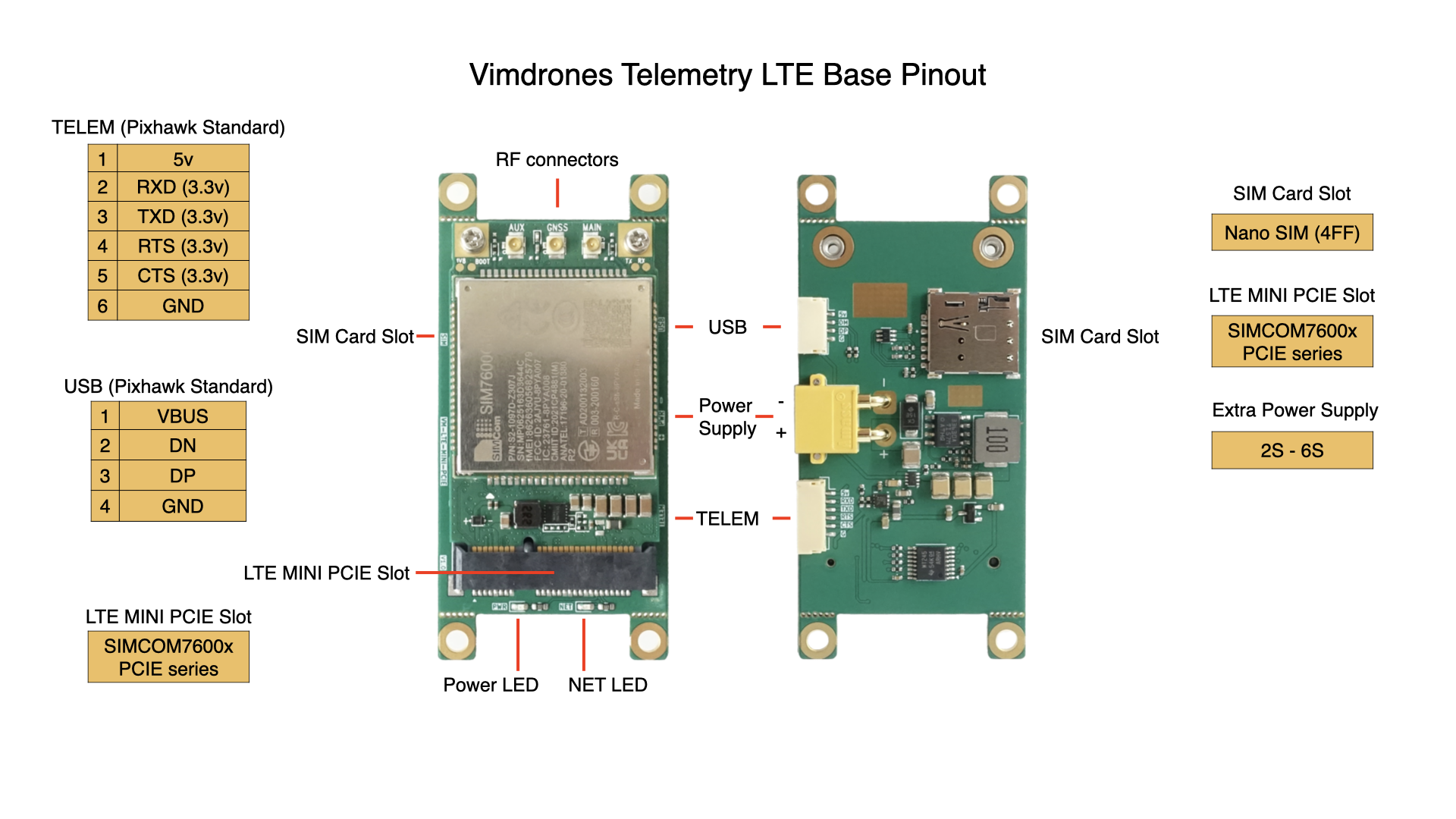

Pinout

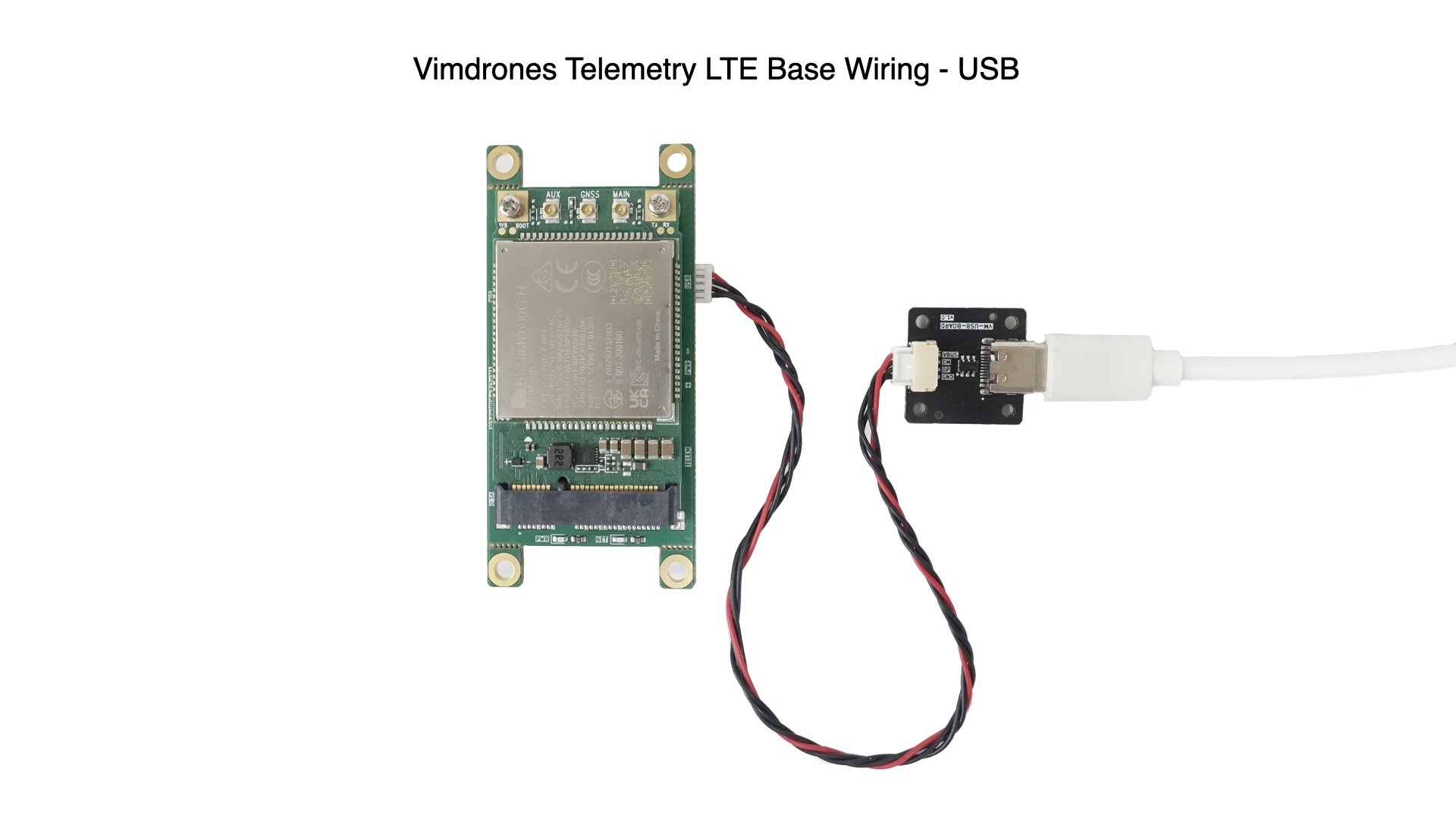

Wiring
Features
- Ardupilot Serial Direct LTE Network via Transparent Mode or PPP
- TTL level convert
- Extra Battery power supply
- USB interface for Linux SBC
