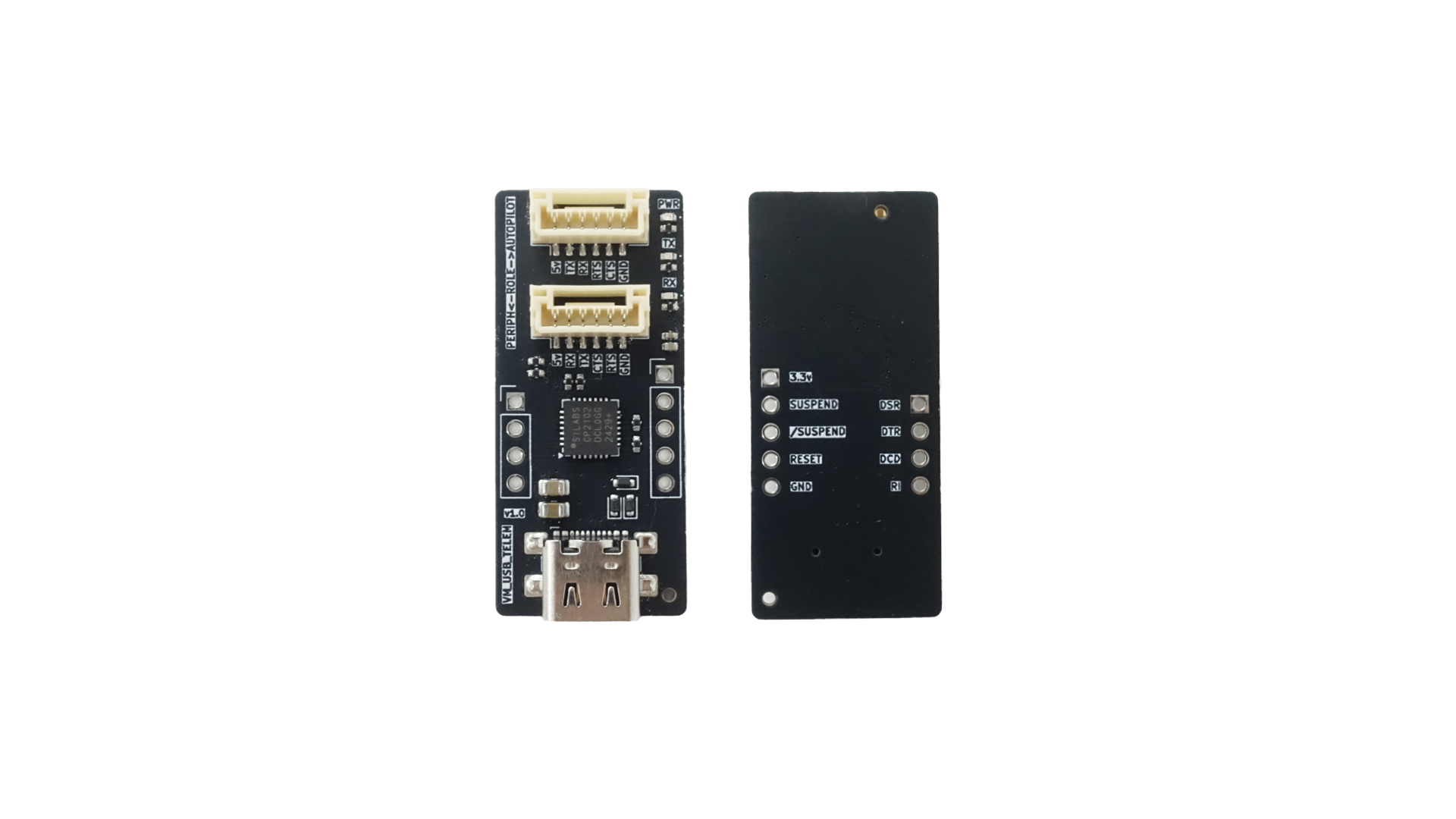

Vimdrones USB Telem
Specification
| Parameter | Value |
|---|---|
| USB-Serial | Silabs CP2102 |
| Connector | Pixhawk Standard 6P Telem connector (UART + FLOW), Flight Controller side and Periph side |
| Board Outline | 40mm * 18mm |
| 3D Model | STL | STEP |

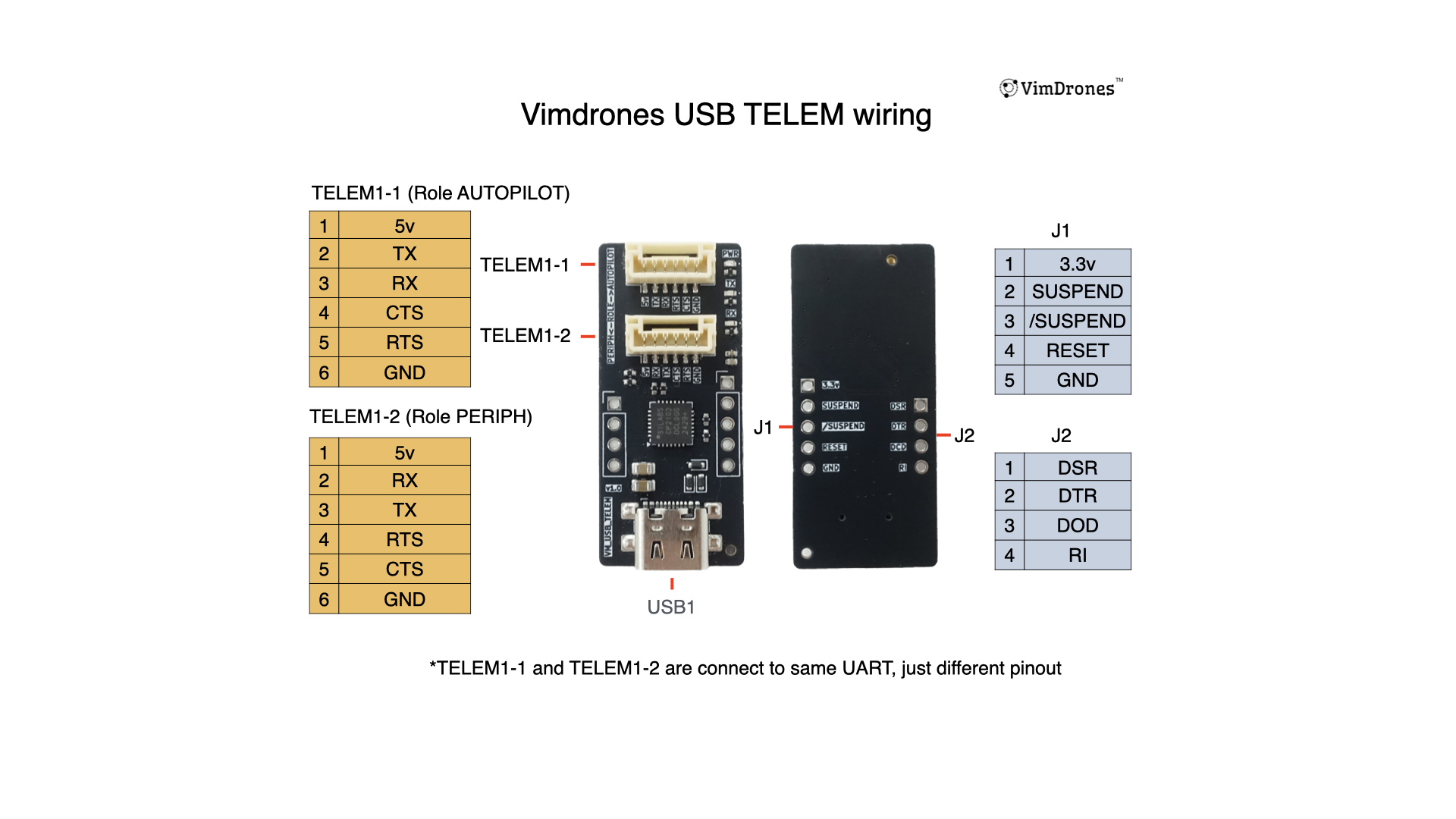

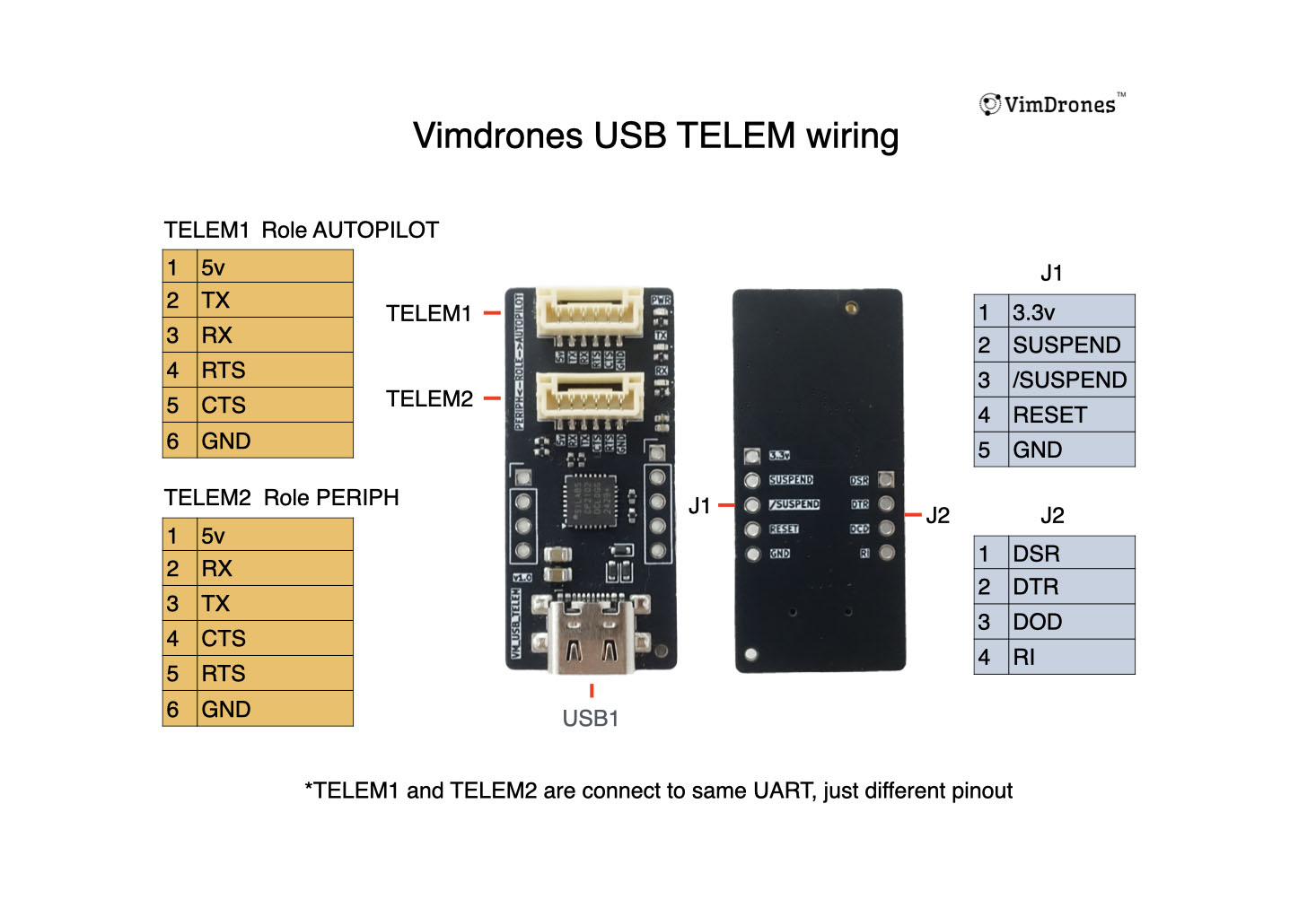

Pinout
CTS|RTS Silkscreen inverted in v1.0!
CTS|RTS Silkscreen is wrong in v1.0, correct order silkscreen for AutoPilot Role is 5V|TX|RX|CTS|RTS|GND, for Periph Role is 5V|RX|TX|RTS|CTS|GND
Example Usage
- With ArduPilot SITL
./build/sitl/bin/arducopter --model copter --speedup 1 --slave 0 --sim-address=127.0.0.1 -IO --serial5=uart:/dev/cu.SLAB_USBtoUART
