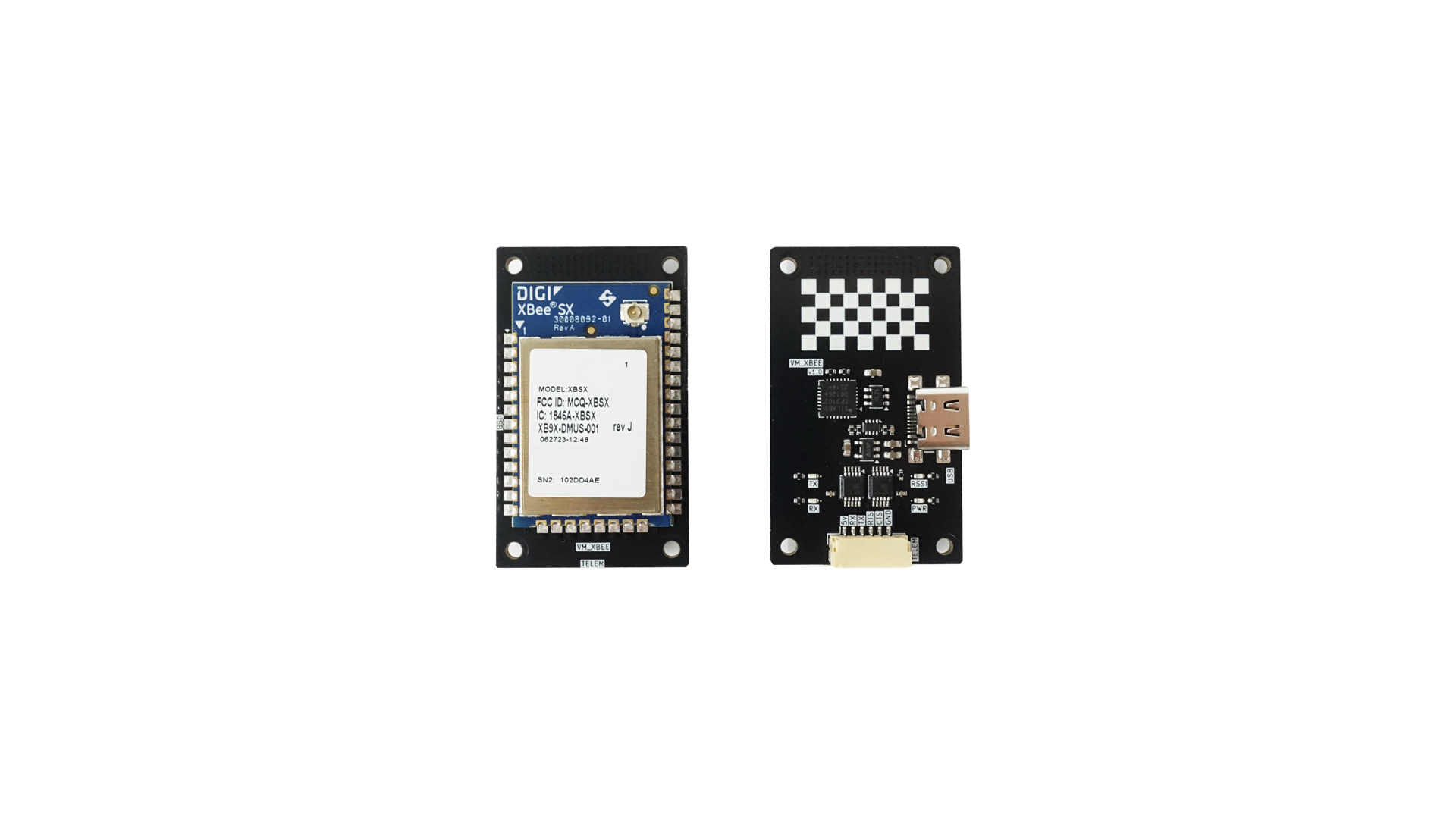

Vimdrones XBee
Specification
| Parameter | Value |
|---|---|
| Power Supply | 5V |
| RF Module | Digi XBee SX 900 / SX 868 |
| RF Connector | ipex1 |
| USB-Serial | Silabs CP2102 |
| Connector | Pixhawk Standard 6P Telem Connector (UART + RTS|CTS) |
| Board Outline | 45.5mm × 27.5mm |
| Mount Hole | 4 * M2 (40mm × 22mm) |
| 3D Model | STL | STEP |

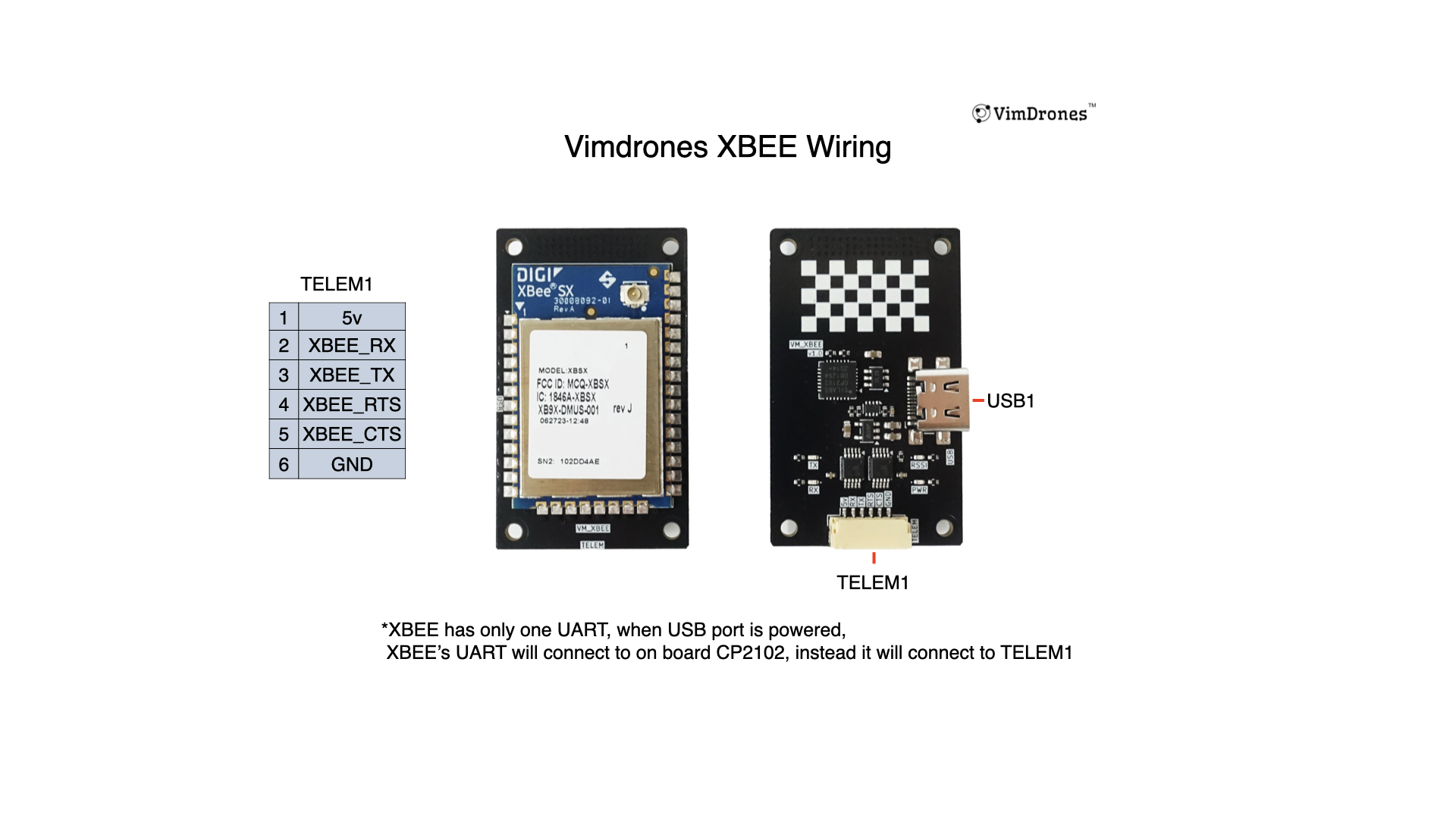

Pinout
Tip
The XBee SX has only one UART. The USB port and the Telem connector share the same UART, so they cannot be used simultaneously. When powering the board via USB, connect to the USB port otherwise connected to Telem port.
